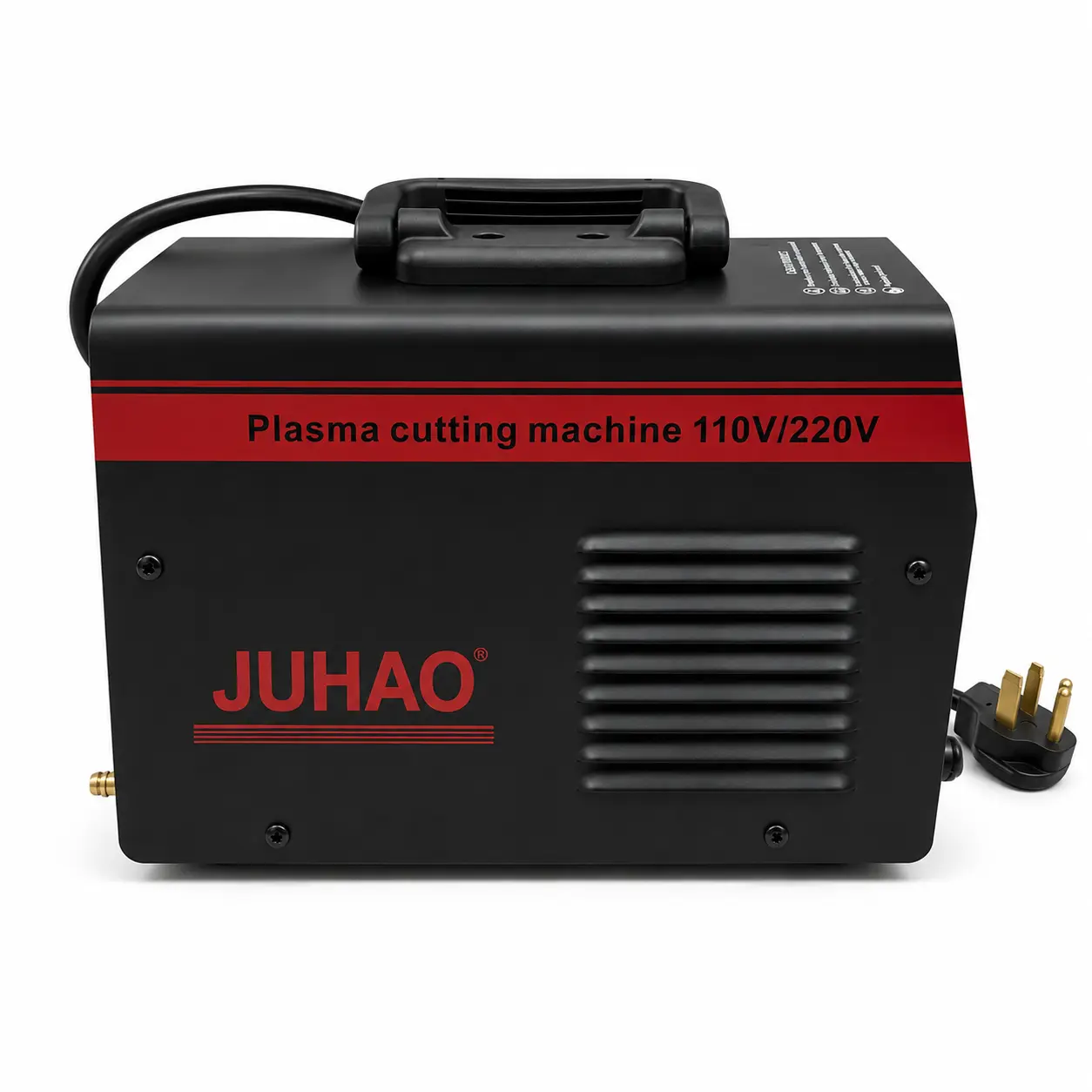

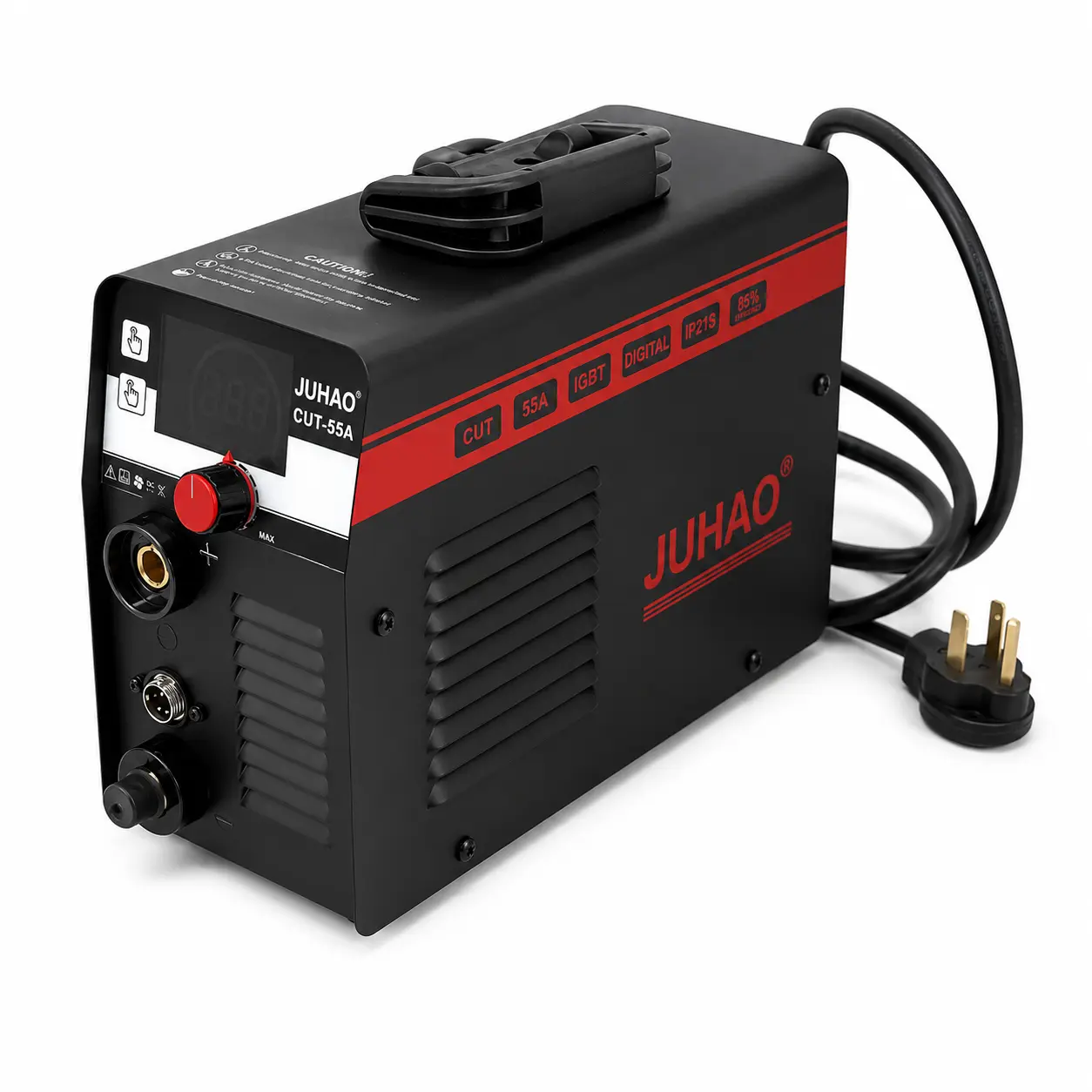

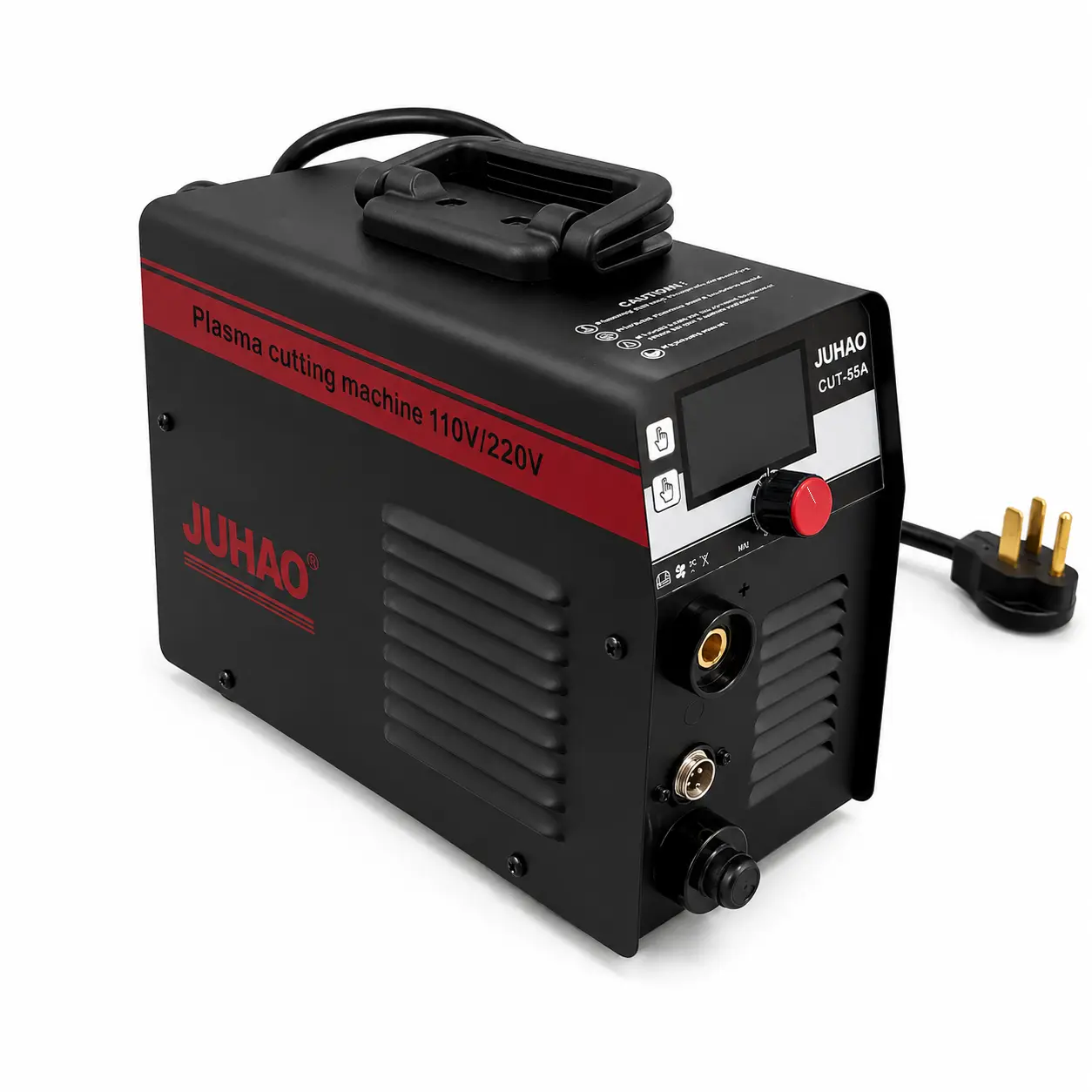

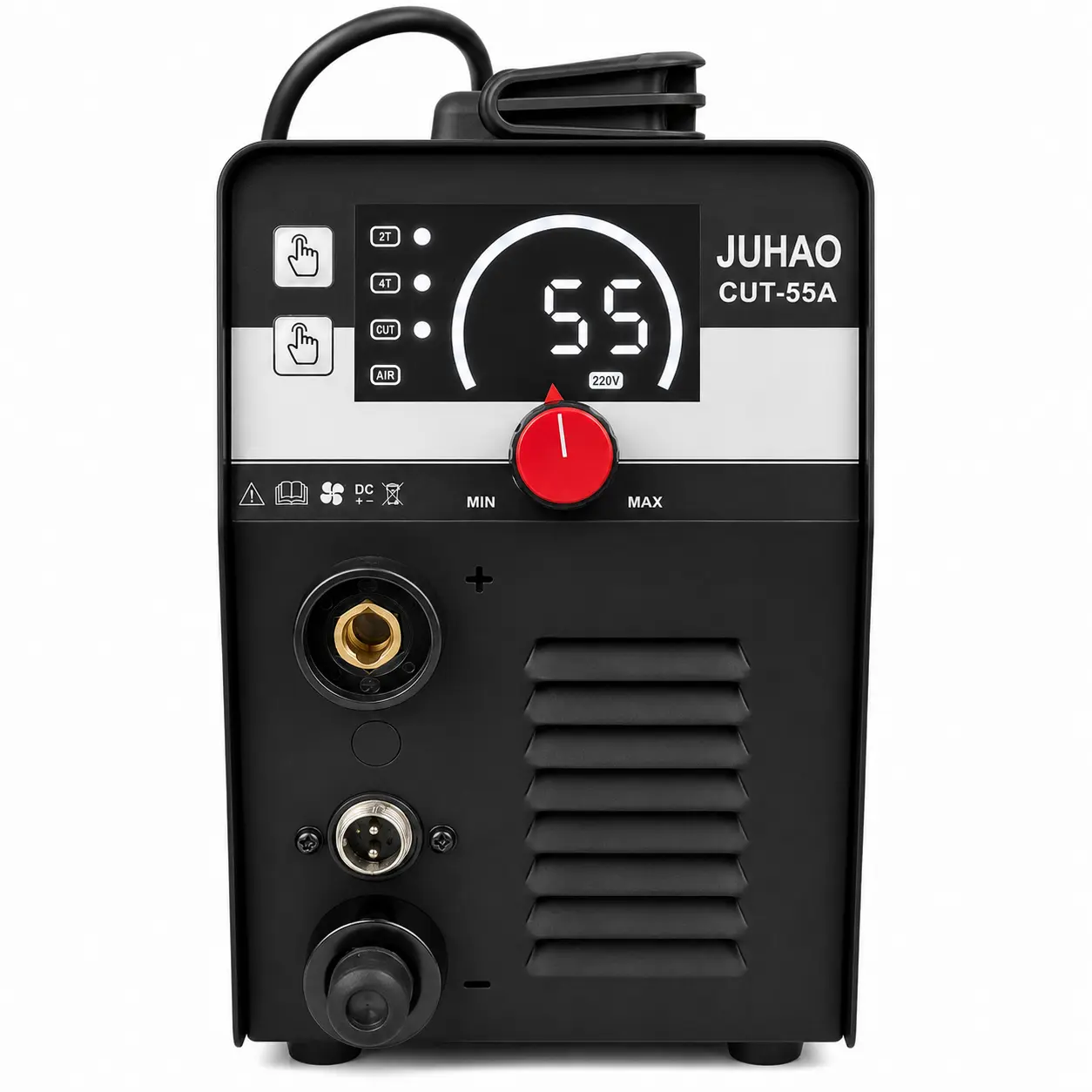

Dual Voltage 110V/220V 40A Plasma Cutter, IGBT Inverter, Cuts Up to 16mm Steel
Inverter Technology: IGBT
Rated Input Current: 110V: 98A 220V:65A
Input Voltage / Frequency: 110V/220V
model: CUT55A
Product Description
Dual voltage 110V/220V plasma cutter with up to 40A output and IGBT inverter technology. Cuts steel up to 16mm thick and weighs only 3.85kg. Includes PT31 torch kit, ideal for auto repair, metal fabrication, and workshop maintenance.
Product Specifications
Machine Type | Plasma Cutting Machine |
Input Voltage / Frequency | 110V / 220V, 50/60HZ |
Rated Input Current | 110V: 98A |
Output Current Range | 110V: 15-30A |
Rated Duty Cycle | 30% |
Inverter Technology | IGBT |
Efficiency | 85% |
No-load Voltage | 280V |
Cutting Thickness Range | 1-16MM |
Insulation & Protection Class | F |
Machine Dimensions | 330*260*120MM |
Package Dimensions | 380*285*210MM |
Net Weight | 3.85KG |
Gross Weight | 6.25KG |
Product Advantages
1. Dual Voltage 110V/220V Input
Works with standard household and workshop power supplies for greater flexibility.
2. Powerful 40A Cutting Performance
Provides clean and efficient cutting on a wide range of metal materials.
3. Cuts Up to 16mm Metal
Handles steel, stainless steel, aluminum, and other conductive metals with ease.
4. Advanced IGBT Inverter Technology
Delivers stable performance, fast response, and improved energy efficiency.
5. Portable 3.85kg Design
Lightweight and easy to transport between workshops, garages, and job sites.
6. Built for Repair & Fabrication
Ideal for sheet metal work, automotive repair, steel fabrication, and maintenance tasks.

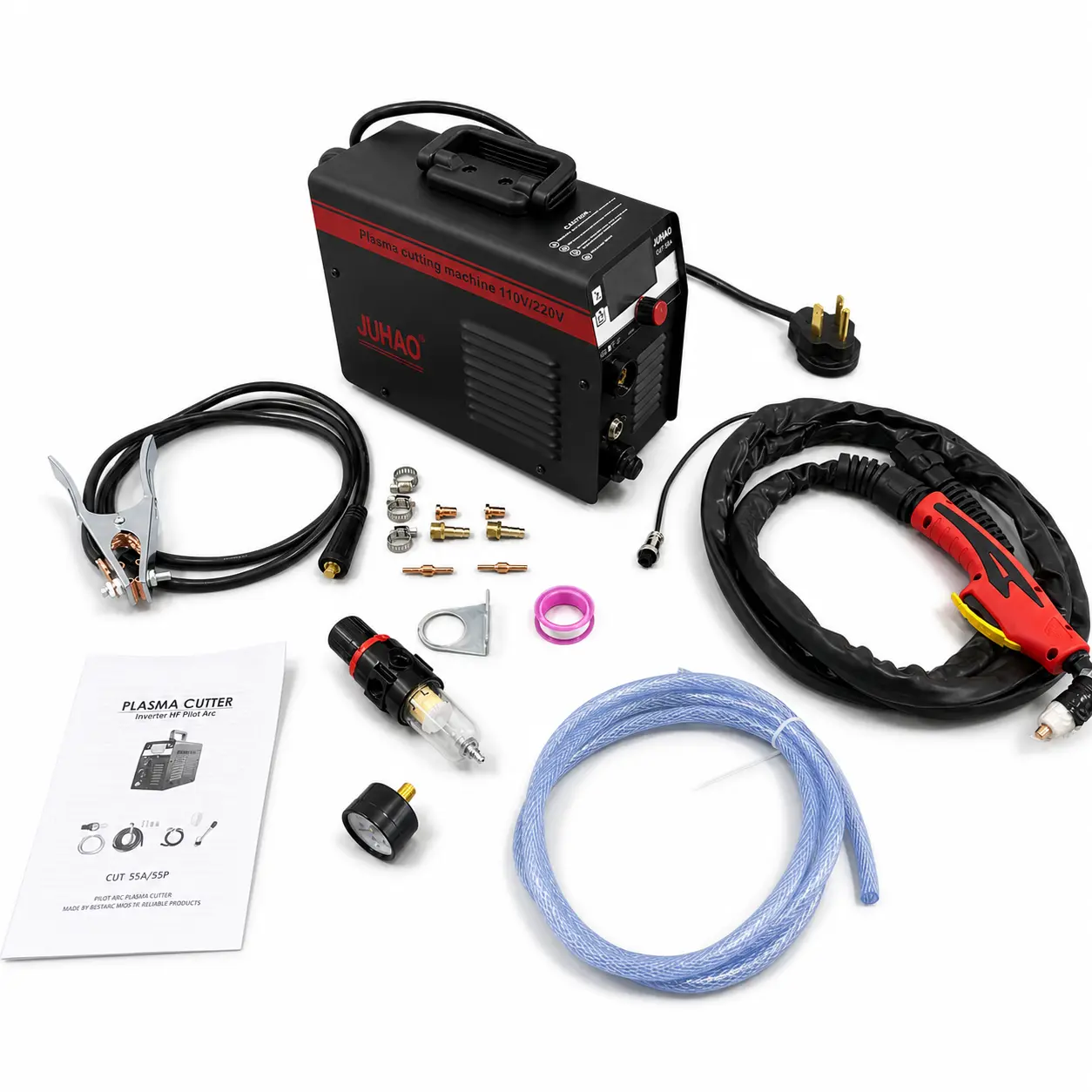

List of Accessories
1 Piece 3M PT31 Plasma Cutting Torch
1 Piece 2M 300A Earth Cable with 10-25mm Connector
1 Piece User Manual
2 Pcs Electrodes & Cutting Nozzles
1 Piece Waterproof Tape
1 Piece Air Pressure Reducing Regulator
1 Piece 2M Air Hose
2 Pcs Hose Clamps
1 Piece Adapter: Small American Connector to Large American Connector
FAQ
Q1. What is the CUT-55A used for?
A1. The CUT-55A is designed for plasma cutting conductive metals such as mild steel, stainless steel, aluminum, and copper. It is ideal for fabrication, repair, maintenance, and workshop applications.
Q2. What input voltage does it support?
A2. The machine supports dual voltage 110V/220V, 50/60Hz, making it suitable for both household and workshop power supplies in different regions.
Q3. Can I use this plasma cutter on a standard household outlet?
A3. Yes. The CUT-55A can operate on a standard 110V household outlet, delivering up to 30A output. For maximum cutting performance, a 220V power supply is recommended.
Q4. How thick can it cut?
A4. The machine is rated for cutting conductive metals from 1mm to 16mm thick. Actual cutting performance may vary depending on material type, air pressure, current settings, and operator technique.
Q5. Can it cut stainless steel and aluminum?
A5. Yes. The CUT-55A is suitable for cutting stainless steel, aluminum, mild steel, copper, and other conductive metals when used with the correct settings and air supply.
Q6. Does it use IGBT inverter technology?
A6. Yes. Advanced IGBT inverter technology provides stable cutting performance, improved efficiency, and a compact, lightweight machine design.
Q7. Does it require an air compressor?
A7. Yes. Plasma cutting requires a compressed air supply. The machine must be connected to a suitable air compressor to operate properly.
Q8. What accessories are included?
A8. The package includes a PT31 cutting torch, ground cable, air hose, regulator, electrode and nozzle set, user manual, and necessary connection accessories.
Q9. Is it suitable for automotive repair?
A9. Yes. The CUT-55A is well suited for automotive body repair, sheet metal cutting, exhaust work, fabrication projects, and general maintenance applications.
Q10. Is this plasma cutter suitable for beginners?
A10. Yes. With its lightweight design, dual voltage capability, and simple operation, the CUT-55A is suitable for DIY users, hobbyists, repair shops, and professional metalworkers.
