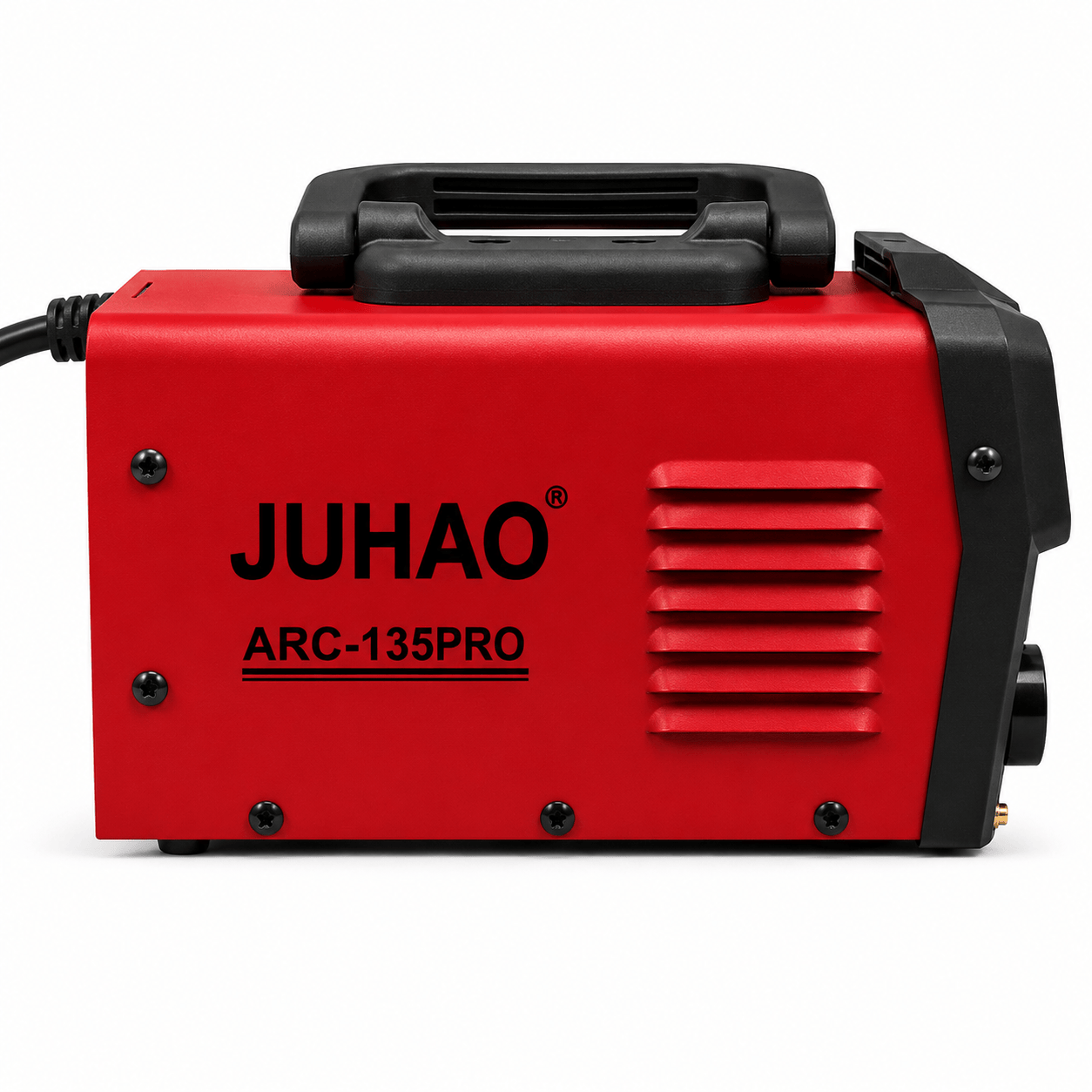

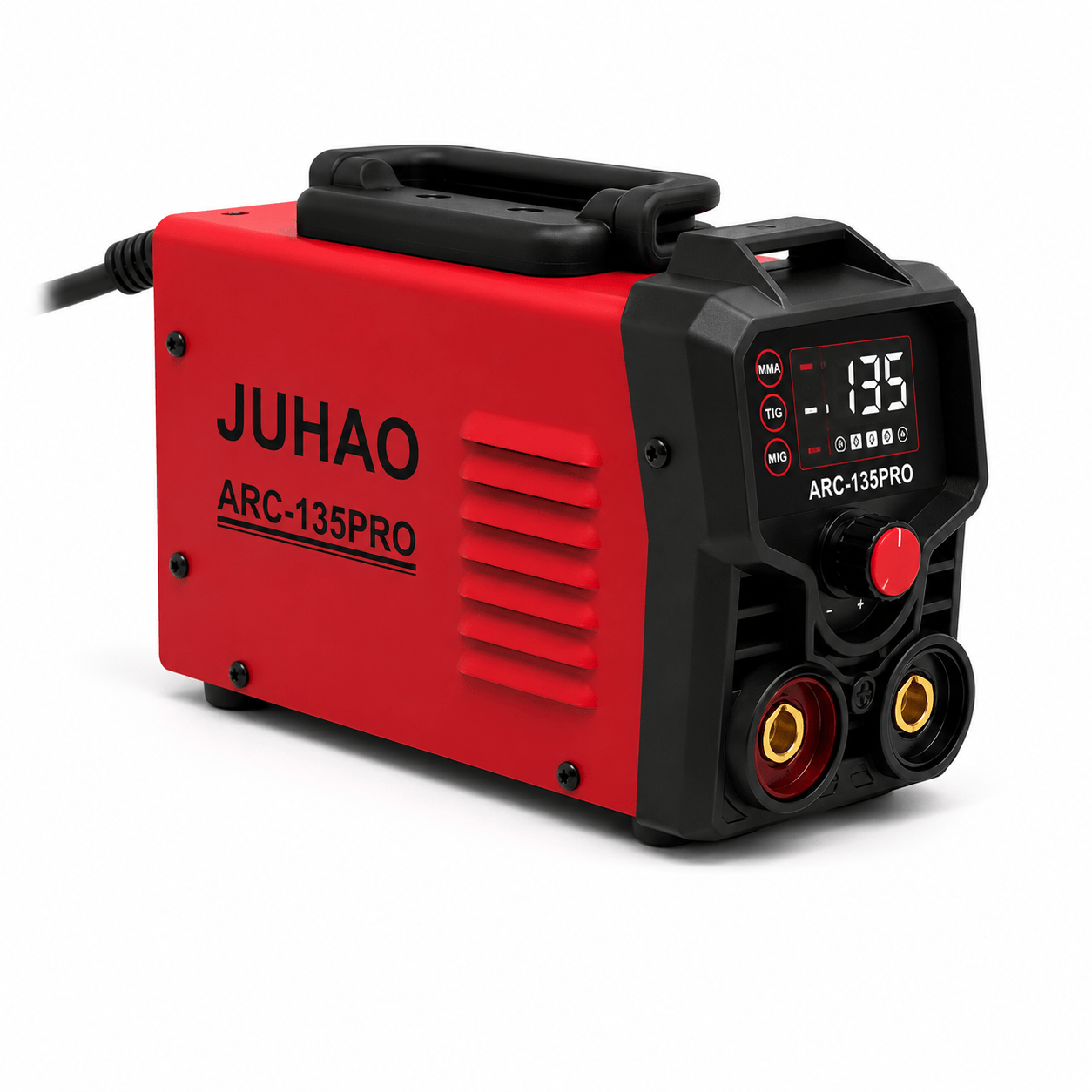

110V MMA & Lift TIG Welder, 120A, Portable 2kg Design
Rated Input Current: 45A
Input Voltage / Frequency: 110V
model: ARC-135PRO
Product Description
110V MMA & Lift TIG welder featuring dual welding functions in one compact machine. IGBT inverter technology delivers up to 120A output for stable arc performance. Lightweight 2kg portable design, ideal for home repair, DIY projects, maintenance and light fabrication applications.
Product Specifications
Model Type | MMA & Lift TIG 2-in-1 Welder |
Input Voltage / Frequency | 110V |
Rated Input Current | 45A |
Output Current Range | MMA: 120A |
Rated Duty Cycle | 20% |
Inverter Technology | IGBT |
Efficiency | 85% |
No-load Voltage | 65V |
Welding Thickness | 0.8-5MM |
Usable Electrode Diameter | 1.6-3.2MM |
Insulation & Protection Class | F |
Machine Dimensions | 230*100*160MM |
Package Dimensions | 320*220*200MM |
Net Weight | 2KG |
Gross Weight | 4.18KG |
Product Advantages
1. MMA & Lift TIG Welding Capability
Supports both MMA (stick) and Lift TIG welding functions in one compact machine.
2. Ultra Lightweight & Portable
Weighing only 2kg, the machine is easy to carry for home, workshop and outdoor repair applications.
3. Standard 110V Household Power
Operates on standard 110V household outlets without requiring special wiring.
4. Advanced IGBT Inverter Technology
Provides stable arc performance, reliable starts and smooth welding operation.
5. 120A Welding Output
Delivers up to 120A output for home repair, maintenance and light fabrication tasks.
6. Suitable for Common Repair Applications
Recommended for welding materials from 0.8mm to 5mm, covering most DIY, maintenance and repair projects.

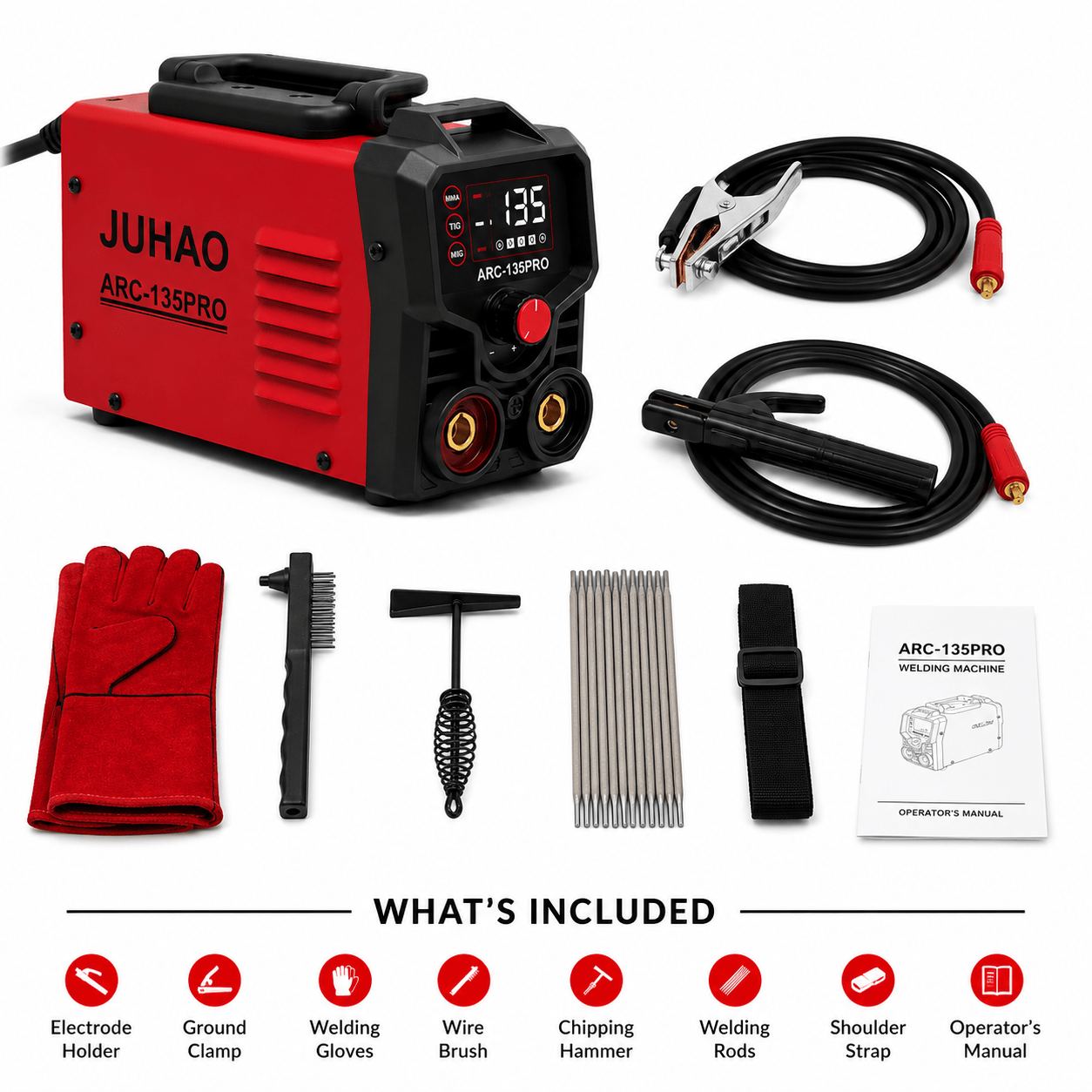

List of Accessories
Adjustable Shoulder Strap
5 Pcs 2.5mm Welding Electrodes
Chipping Hammer
Welding Protective Gloves
2M Electrode Holder Cable + 2M Earth Clamp Cable
FAQ
Q1. What welding processes does this machine support?
A1. It supports MMA (stick welding) and Lift TIG welding, providing two welding functions in one compact machine.
Q2. What power supply does it need?
A2. It operates on standard 110V household outlets. No special wiring or industrial plug is required.
Q3. What is the maximum welding output?
A3. The maximum output is 120A for both MMA and Lift TIG welding on 110V input.
Q4. What is the duty cycle?
A4. The rated duty cycle is 20% at 120A, allowing continuous welding for 2 minutes within a 10-minute cycle at maximum output.
Q5. What electrode (stick) sizes can I use?
A5. It supports 1.6mm to 3.2mm welding electrodes, covering common sizes for home repair and light fabrication work.
Q6. What materials and thicknesses can be welded?
A6. It is suitable for welding carbon steel and mild steel, with a recommended welding thickness range of 0.8mm to 5mm depending on the welding process and application.
Q7. Can I do TIG welding with this machine?
A7. Yes. It supports Lift TIG welding. A compatible Lift TIG torch with a gas valve is required (not included).
Q8. How portable is this machine?
A8. It weighs only 2kg and includes a shoulder strap, making it easy to carry for home repairs, maintenance and mobile welding tasks.
Q9. Is this machine suitable for beginners?
A9. Yes. Its simple controls, lightweight design and dual welding functions make it suitable for DIY users, hobbyists and beginner welders.
Q10. Do you offer OEM or private label services? What is the MOQ?
A10. Yes, OEM and ODM services are available for brands and volume buyers. MOQ is negotiable – please contact us to discuss your requirements (logo, packaging, quantity, etc.).
